xxxxxxxxxx

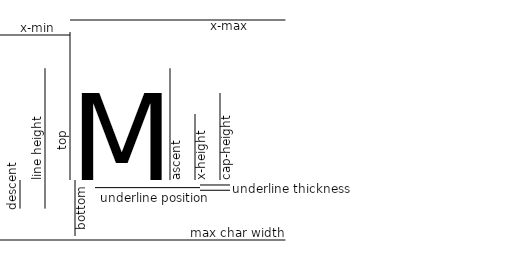

void draw(SkCanvas* canvas) {
    SkPaint paint;
    paint.setAntiAlias(true);
    paint.setTextSize(120);
    SkPaint::FontMetrics fm;
    SkScalar lineHeight = paint.getFontMetrics(&fm);
    SkPoint pt = { 70, 180 };
    canvas->drawString("M", pt.fX, pt.fY, paint);
    canvas->drawLine(pt.fX, pt.fY, pt.fX, pt.fY + fm.fTop, paint);
    SkScalar ascent = pt.fY + fm.fAscent;
    canvas->drawLine(pt.fX - 25, ascent, pt.fX - 25, ascent + lineHeight, paint);
    canvas->drawLine(pt.fX - 50, pt.fY, pt.fX - 50, pt.fY + fm.fDescent, paint);
    canvas->drawLine(pt.fX + 100, pt.fY, pt.fX + 100, pt.fY + fm.fAscent, paint);
    canvas->drawLine(pt.fX + 125, pt.fY, pt.fX + 125, pt.fY - fm.fXHeight, paint);
    canvas->drawLine(pt.fX + 150, pt.fY, pt.fX + 150, pt.fY - fm.fCapHeight, paint);
    canvas->drawLine(pt.fX + 5, pt.fY, pt.fX + 5, pt.fY + fm.fBottom, paint);
    SkScalar xmin = pt.fX + fm.fXMin;
    canvas->drawLine(xmin, pt.fY + 60, xmin + fm.fMaxCharWidth, pt.fY + 60, paint);
    canvas->drawLine(xmin, pt.fY - 145, pt.fX, pt.fY - 145, paint);
    canvas->drawLine(pt.fX + fm.fXMax, pt.fY - 160, pt.fX, pt.fY - 160, paint);
    SkScalar upos = pt.fY + fm.fUnderlinePosition;
    canvas->drawLine(pt.fX + 25, upos, pt.fX + 130, upos, paint);
    SkScalar urad = fm.fUnderlineThickness / 2;
    canvas->drawLine(pt.fX + 130, upos - urad, pt.fX + 160, upos - urad, paint);
    canvas->drawLine(pt.fX + 130, upos + urad, pt.fX + 160, upos + urad, paint);
    paint.setTextSize(12);
    canvas->drawString("x-min",          pt.fX - 50, pt.fY - 148, paint);
    canvas->drawString("x-max",          pt.fX + 140, pt.fY - 150, paint);
    canvas->drawString("max char width", pt.fX + 120, pt.fY + 57, paint);
    canvas->drawString("underline position", pt.fX + 30, pt.fY + 22, paint);
    canvas->drawString("underline thickness", pt.fX + 162, pt.fY + 13, paint);
    canvas->rotate(-90);
    canvas->drawString("descent",     -pt.fY - 30, pt.fX - 54,  paint);
    canvas->drawString("line height", -pt.fY,      pt.fX - 29,  paint);
    canvas->drawString("top",         -pt.fY + 30, pt.fX - 4,   paint);
    canvas->drawString("ascent",      -pt.fY,      pt.fX + 110, paint);
    canvas->drawString("x-height",    -pt.fY,      pt.fX + 135, paint);
    canvas->drawString("cap-height",  -pt.fY,      pt.fX + 160, paint);
    canvas->drawString("bottom",      -pt.fY - 50, pt.fX + 15,  paint);
}
​
