void draw(SkCanvas* canvas) {
    SkPaint p;
    p.setColor(SK_ColorRED);
    p.setAntiAlias(true);
    p.setStyle(SkPaint::kFill_Style);
    p.setStrokeWidth(10);
​
    SkPath path;
    path.setFillType(SkPathFillType::kWinding);
    path.setFillType(SkPathFillType::kWinding);
    path.moveTo(375, -30);
    path.cubicTo(578, -30, 749, 176, 749, 422);
    path.cubicTo(749, 583, 666, 706, 518, 765);
    path.lineTo(163, 611);
    path.lineTo(163, 579);
    path.lineTo(405, 684);
    path.cubicTo(551, 609, 645, 468, 645, 322);
    path.cubicTo(645, 183, 563, 82, 450, 82);
    path.cubicTo(303, 82, 179, 249, 179, 446);
    path.cubicTo(179, 579, 235, 689, 341, 768);
    path.lineTo(327, 786);
    path.cubicTo(165, 717, 56, 536, 56, 335);
    path.cubicTo(56, 125, 192, -30, 375, -30);
    path.close();
    path.moveTo(214, 225);
    path.cubicTo(333, 248, 396, 311, 396, 405);
    path.lineTo(396, 695);
    path.lineTo(267, 641);
    path.lineTo(267, 395);
    path.cubicTo(267, 324, 249, 285, 201, 254);
    path.cubicTo(201, 254, 214, 225, 214, 225);
    path.close();
    path.moveTo(682, -106);
    path.lineTo(832, 12);
    path.lineTo(813, 33);
    path.lineTo(772, 0);
    path.cubicTo(716, 29, 668, 76, 628, 140);
    path.lineTo(527, 44);
    path.cubicTo(575, -26, 628, -77, 682, -106);
    path.close();
    path.moveTo(450, 59);
    path.lineTo(480, 59);
    path.lineTo(480, 678);
    path.lineTo(450, 678);
    path.cubicTo(450, 678, 450, 59, 450, 59);
    path.close();
    path.moveTo(463, 374);
    path.lineTo(633, 459);
    path.lineTo(633, 490);
    path.lineTo(463, 406);
    path.cubicTo(463, 406, 463, 374, 463, 374);
    path.close();
    path.moveTo(463, 269);
    path.lineTo(667, 372);
    path.lineTo(667, 403);
    path.lineTo(463, 301);
    path.cubicTo(463, 301, 463, 269, 463, 269);
    path.close();

    SkPath path2;
    path2.setFillType(SkPathFillType::kWinding);
    path2.moveTo(492.041f, 525.339f);
    path2.cubicTo(492.041f, 521.624f, 490.727f, 518.453f, 488.1f, 515.826f);
    path2.cubicTo(485.473f, 513.199f, 482.302f, 511.886f, 478.587f, 511.886f);
    path2.cubicTo(474.872f, 511.886f, 471.701f, 513.199f, 469.074f, 515.826f);
    path2.cubicTo(466.447f, 518.453f, 465.134f, 521.624f, 465.134f, 525.339f);
    path2.cubicTo(465.134f, 529.054f, 466.447f, 532.226f, 469.074f, 534.853f);
    path2.cubicTo(471.701f, 537.479f, 474.872f, 538.793f, 478.587f, 538.793f);
    path2.cubicTo(482.302f, 538.793f, 485.473f, 537.479f, 488.1f, 534.853f);
    path2.cubicTo(490.727f, 532.226f, 492.041f, 529.054f, 492.041f, 525.339f);
    path2.close();

    SkPath opResult;
    Op(path, path2, kDifference_SkPathOp, &opResult);

    // This produces the correct result in all the cases I've tried.
    // So it appears to be a winding issue.
    //canvas->drawPath(opResult, p);

    SkPath winding;
    path2.setFillType(SkPathFillType::kWinding);
    AsWinding(opResult, &winding);

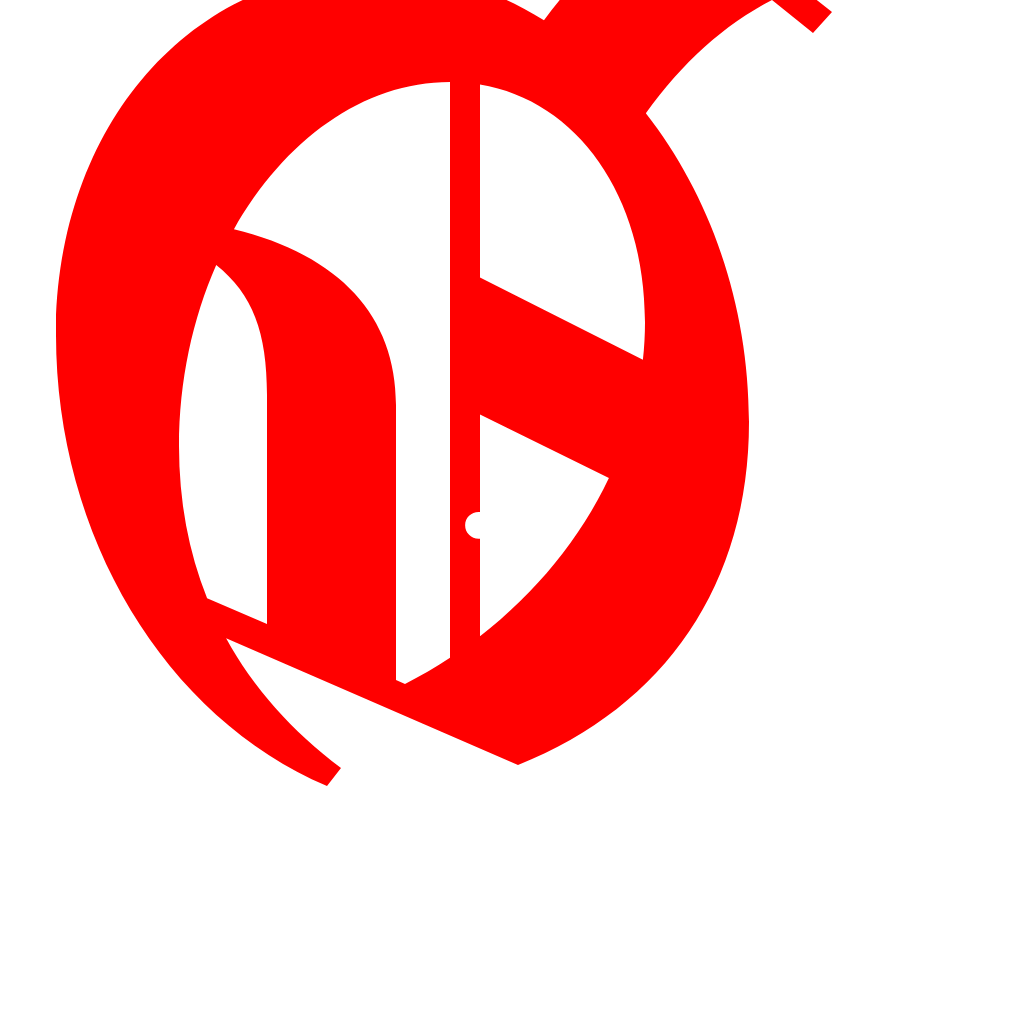

    canvas->drawPath(winding, p);
}
