xxxxxxxxxx

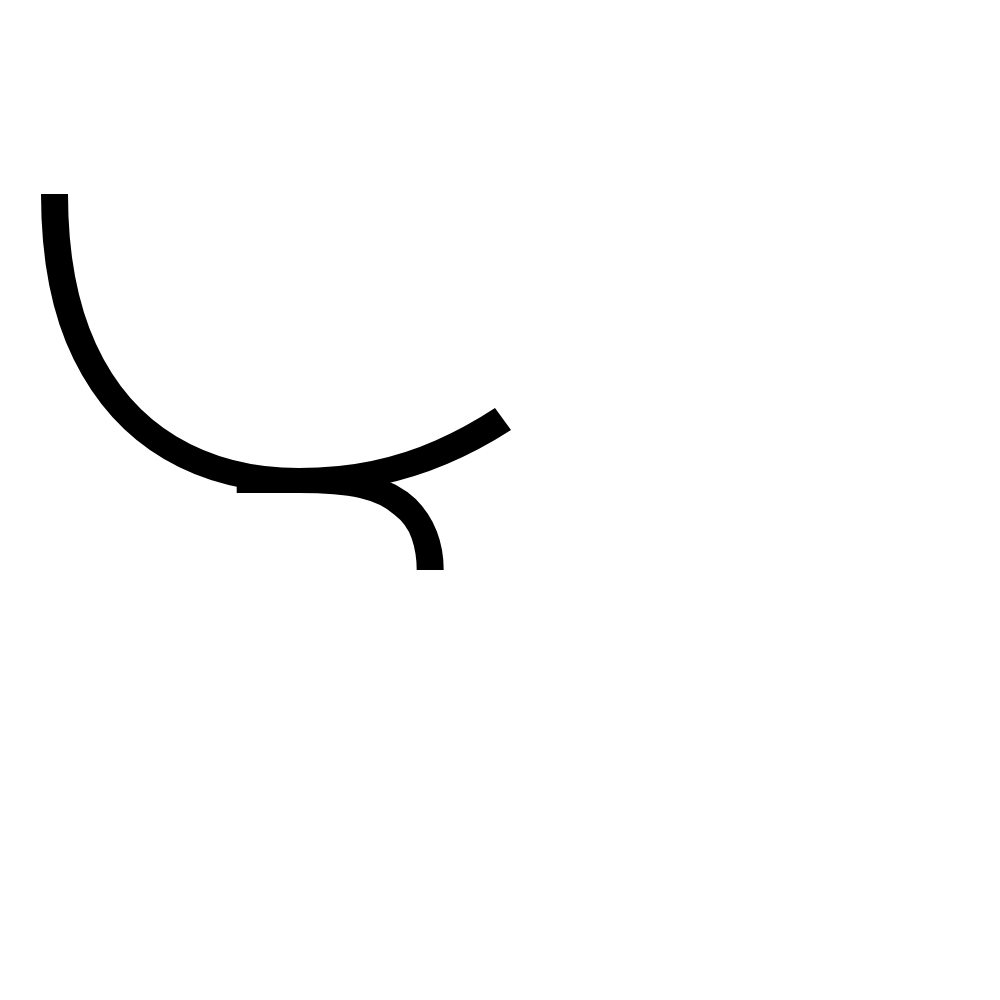

void draw(SkCanvas* canvas) {
    SkPaint paint;
    paint.setAntiAlias(true);

    SkPath path, result;

    path.setFillType(SkPathFillType::kWinding);
    path.moveTo(SkBits2Float(0x42240000), SkBits2Float(0x43420000));  // 41, 194
    path.quadTo(SkBits2Float(0x42240000), SkBits2Float(0x43928000), SkBits2Float(0x42930000), SkBits2Float(0x43b38000));  // 41, 293, 73.5f, 359
    path.quadTo(SkBits2Float(0x42d40000), SkBits2Float(0x43d48000), SkBits2Float(0x43240000), SkBits2Float(0x43e58000));  // 106, 425, 164, 459
    path.quadTo(SkBits2Float(0x435e0000), SkBits2Float(0x43f68000), SkBits2Float(0x43958000), SkBits2Float(0x43f68000));  // 222, 493, 299, 493
    path.quadTo(SkBits2Float(0x43ab0000), SkBits2Float(0x43f68000), SkBits2Float(0x43bd0000), SkBits2Float(0x43f2c000));  // 342, 493, 378, 485.5f
    path.quadTo(SkBits2Float(0x43cf0000), SkBits2Float(0x43ef0000), SkBits2Float(0x43df8000), SkBits2Float(0x43e80000));  // 414, 478, 447, 464
    path.quadTo(SkBits2Float(0x43f00000), SkBits2Float(0x43e10000), SkBits2Float(0x43ff8000), SkBits2Float(0x43d70000));  // 480, 450, 511, 430
    path.lineTo(SkBits2Float(0x43f78000), SkBits2Float(0x43cc0000));  // 495, 408
    path.quadTo(SkBits2Float(0x43e90000), SkBits2Float(0x43d58000), SkBits2Float(0x43d9c000), SkBits2Float(0x43dc4000));  // 466, 427, 435.5f, 440.5f
    path.quadTo(SkBits2Float(0x43ca8000), SkBits2Float(0x43e30000), SkBits2Float(0x43b9c000), SkBits2Float(0x43e68000));  // 405, 454, 371.5f, 461
    path.quadTo(SkBits2Float(0x43a90000), SkBits2Float(0x43ea0000), SkBits2Float(0x43958000), SkBits2Float(0x43ea0000));  // 338, 468, 299, 468
    path.quadTo(SkBits2Float(0x43650000), SkBits2Float(0x43ea0000), SkBits2Float(0x43308000), SkBits2Float(0x43da4000));  // 229, 468, 176.5f, 436.5f
    path.quadTo(SkBits2Float(0x42f80000), SkBits2Float(0x43ca8000), SkBits2Float(0x42c00000), SkBits2Float(0x43ac0000));  // 124, 405, 96, 344
    path.quadTo(SkBits2Float(0x42880000), SkBits2Float(0x438d8000), SkBits2Float(0x42880000), SkBits2Float(0x43420000));  // 68, 283, 68, 194
    path.lineTo(SkBits2Float(0x42240000), SkBits2Float(0x43420000));  // 41, 194
    path.close();
    path.moveTo(SkBits2Float(0x43ddd958), SkBits2Float(0x440e8000));  // 443.698f, 570
    path.quadTo(SkBits2Float(0x43ddd958), SkBits2Float(0x44094000), SkBits2Float(0x43da5958), SkBits2Float(0x4404c000));  // 443.698f, 549, 436.698f, 531
    path.quadTo(SkBits2Float(0x43d6d958), SkBits2Float(0x44004000), SkBits2Float(0x43cfd958), SkBits2Float(0x43f98000));  // 429.698f, 513, 415.698f, 499
    path.quadTo(SkBits2Float(0x43c75958), SkBits2Float(0x43f18000), SkBits2Float(0x43ba9958), SkBits2Float(0x43ee0000));  // 398.698f, 483, 373.198f, 476
    path.quadTo(SkBits2Float(0x43add958), SkBits2Float(0x43ea8000), SkBits2Float(0x4396d958), SkBits2Float(0x43ea8000));  // 347.698f, 469, 301.698f, 469
    path.lineTo(SkBits2Float(0x436cb2b0), SkBits2Float(0x43ea8000));  // 236.698f, 469
    path.lineTo(SkBits2Float(0x436cb2b0), SkBits2Float(0x43f68000));  // 236.698f, 493
    path.lineTo(SkBits2Float(0x43955958), SkBits2Float(0x43f68000));  // 298.698f, 493
    path.quadTo(SkBits2Float(0x43a8d958), SkBits2Float(0x43f68000), SkBits2Float(0x43b3d958), SkBits2Float(0x43f90000));  // 337.698f, 493, 359.698f, 498
    path.quadTo(SkBits2Float(0x43bed958), SkBits2Float(0x43fb8000), SkBits2Float(0x43c55958), SkBits2Float(0x4400c000));  // 381.698f, 503, 394.698f, 515
    path.quadTo(SkBits2Float(0x43cb5958), SkBits2Float(0x44030000), SkBits2Float(0x43cdd958), SkBits2Float(0x4406a000));  // 406.698f, 524, 411.698f, 538.5f
    path.quadTo(SkBits2Float(0x43d05958), SkBits2Float(0x440a4000), SkBits2Float(0x43d05958), SkBits2Float(0x440e8000));  // 416.698f, 553, 416.698f, 570
    path.lineTo(SkBits2Float(0x43ddd958), SkBits2Float(0x440e8000));  // 443.698f, 570
    path.close();

    bool ok = Simplify(path, &result);
    SkASSERT(ok);

    canvas->drawPath(path, paint);
}
